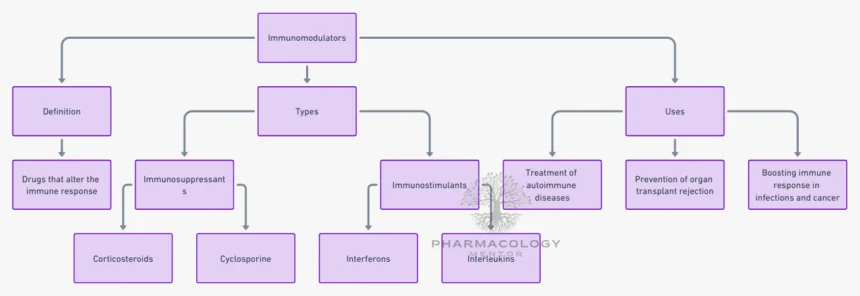

Immunomodulators and a focus on immunosuppressants

Immunomodulators are drugs that can either suppress or enhance the activity of the immune system.

These are two types:

1. Immunosuppressants
2. Immunostimulants

Introduction

Immunosuppressants comprise a diverse group of drugs that inhibit or modulate immune system activity. They serve crucial roles in solid-organ transplantation (preventing graft rejection), autoimmune diseases (hindering pathological immune attacks), and certain inflammatory conditions. By downregulating immune responses, immunosuppressants diminish the risk of tissue or organ damage caused by overactive immunity. However, balancing therapeutic benefits against increased susceptibility to infections and malignancies is paramount.

This comprehensive review explores the pharmacology of key immunosuppressive agents, including corticosteroids, calcineurin inhibitors (e.g., Cyclosporine, Tacrolimus), mTOR inhibitors (e.g., Sirolimus, Everolimus), antiproliferative and antimetabolite agents (e.g., Azathioprine, Mycophenolate mofetil), and biological therapies (monoclonal antibodies like Basiliximab). Each drug class targets specific immune pathways, with unique pharmacokinetics, mechanisms of action, clinical uses, and safety profiles. By understanding these agents, clinicians can optimize immunosuppressive regimens, deter transplant rejection, mitigate autoimmune flares, and minimize unwanted side effects.

Overview of the Immune Response and the Rationale for Immunosuppression

The immune system orchestrates a complex interplay of innate (non-specific) and adaptive (antigen-specific) arms. Adaptive responses often involve T lymphocytes (helper T cells, cytotoxic T cells) and B lymphocytes (antibody production). Key steps that immunosuppressive therapies target include:

1. Antigen Presentation: Antigen-presenting cells (APCs) display fragments via major histocompatibility complex (MHC) molecules to T cells.
2. Lymphocyte Activation: Signal transduction through T cell receptors (TCR), costimulatory pathways (CD28–B7), and cytokine networks drives T cell proliferation and effector functions.
3. Cytokine Production: IL-2, TNF-α, IL-6, among others, stimulate clonal expansion and recruitment of additional immune cells.
4. Effector Mechanisms: Activated T cells, B cells, macrophages, and complement coordinate inflammatory or cytotoxic actions.

When undesired (as in graft rejection or autoimmune attack), blocking these steps can reduce tissue damage. Immunosuppressants, therefore, mitigate transplant rejection or autoimmunity by dampening T cell activation or interfering with joint immune pathways. Yet, suppressed immune vigilance also predisposes patients to opportunistic infections or malignancies.

Classification of Immunosuppressants

1. Corticosteroids

• Prednisone, Methylprednisolone, Hydrocortisone

2. Calcineurin Inhibitors

• Cyclosporine
• Tacrolimus

3. mTOR (Mammalian Target of Rapamycin) Inhibitors

• Sirolimus (Rapamycin)
• Everolimus

4. Antiproliferative and Antimetabolite Drugs

• Azathioprine
• Mycophenolate Mofetil (MMF)
• Methotrexate (in certain autoimmune contexts)

5. Biologic Immunosuppressants

• Monoclonal Antibodies (e.g., Basiliximab, Infliximab, Rituximab)
• Fusion Proteins (e.g., Etanercept)

6. Others

• Polyclonal Antibodies (e.g., Antithymocyte Globulin [ATG])
• IVIG (intravenous immunoglobulin) in select autoimmune conditions
• Janus Kinase (JAK) Inhibitors (e.g., Tofacitinib) for rheumatoid arthritis and beyond

Clinicians often use multiple agents to achieve complementary immunosuppressive mechanisms, improving graft survival or controlling autoimmune flares, while lowering the dose of individual drugs to reduce toxicity.

Corticosteroids

Mechanism of Action

Glucocorticoids diffuse through the cell membrane and bind cytoplasmic glucocorticoid receptors, subsequently affecting gene transcription in the nucleus. This nuclear effect:

• Decreases cytokine production (IL-1, IL-2, IL-6, TNF-α).
• Reduces T cell and B cell proliferation.
• Stabilizes lysosomal membranes, attenuating the inflammatory cascade.
• Inhibits arachidonic acid pathway by upregulating lipocortin, which blocks phospholipase A2.

By broadly suppressing inflammation and adaptive immunity, corticosteroids rapidly dampen immune overactivity.

Pharmacokinetics

Oral, IV, and topical forms exist. Prednisone is orally active, converted to Prednisolone (active form) in the liver. Methylprednisolone is common IV for acute rejection or severe autoimmune flares. Steroid half-lives and potencies vary, influencing dosing intervals.

Clinical Uses

• Organ transplant maintenance or acute rejection episodes.
• Rheumatoid arthritis, systemic lupus erythematosus (SLE), inflammatory bowel disease, and other autoimmune disorders.
• Asthma and allergic reactions (though not exclusively immunosuppressive in this context).

Side Effects and Toxicities

• Metabolic: Hyperglycemia, weight gain, centripetal obesity, hyperlipidemia.
• Musculoskeletal: Osteoporosis, muscle wasting.
• Infections: Reactivation of latent infections (e.g., tuberculosis).
• Cushingoid features: Moon face, buffalo hump, striae.
• Neuropsychiatric: Mood swings, psychosis.
• HPA Axis suppression: Requires tapering to avoid adrenal crisis.

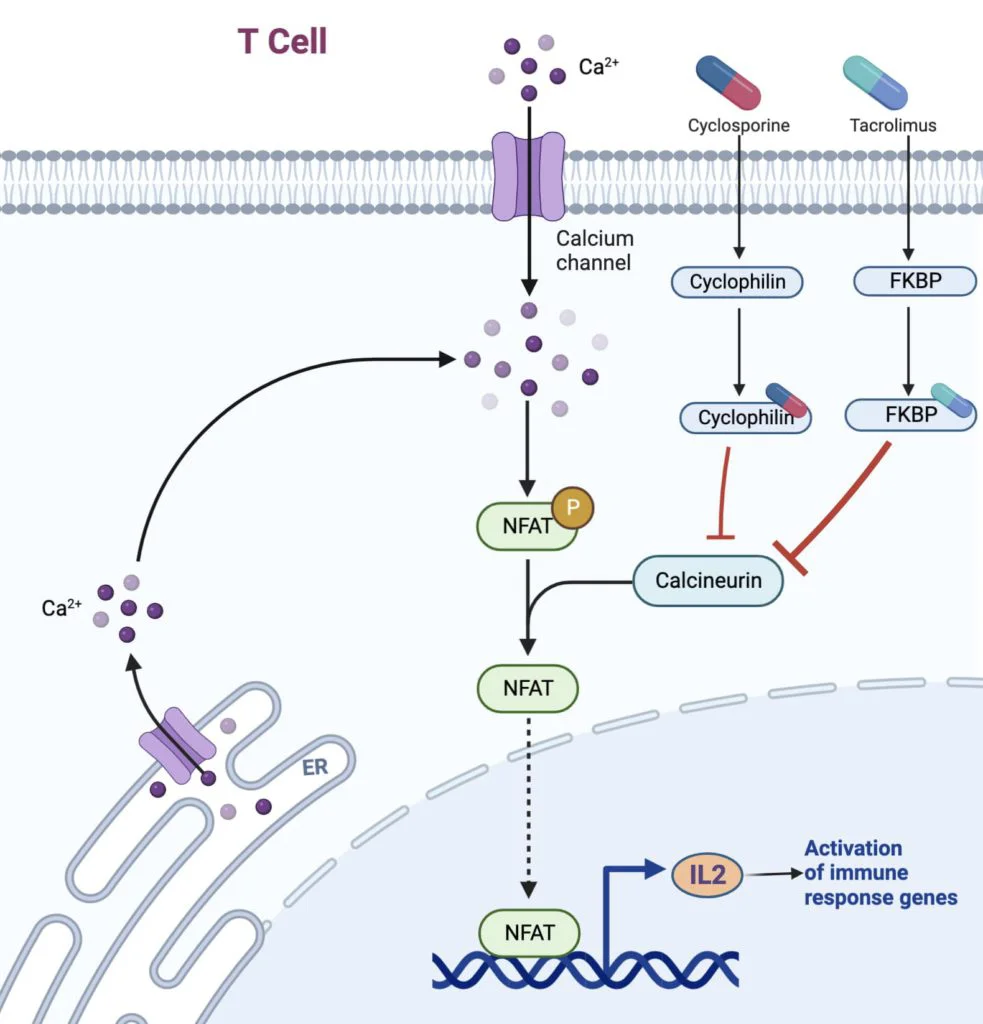

Calcineurin Inhibitors: Cyclosporine and Tacrolimus

Mechanism of Action

FKBP: FK Binding Protein

In T lymphocytes, calcium influx upon TCR engagement activates calcineurin, a phosphatase that dephosphorylates nuclear factor of activated T-cells (NFAT). NFAT then translocates to the nucleus, boosting IL-2 gene transcription. By binding cyclophilin (cyclosporine) or FK506-binding protein (FKBP12) (tacrolimus), these drugs form complexes that inhibit calcineurin activity. This blockade prevents IL-2 production, key for T cell proliferation and survival.

Pharmacokinetics

• Cyclosporine: Variable oral absorption, influenced by bile; metabolized by hepatic CYP3A, leading to numerous drug interactions.
• Tacrolimus: Similar metabolism (CYP3A4). Generally more potent than cyclosporine, with better absorption.

Close therapeutic drug monitoring is imperative due to narrow therapeutic indices and significant interindividual variability.

Clinical Uses

• Primary immunosuppression in organ transplantation (kidney, liver, heart).
• Maintenance therapy combined with steroids and antimetabolites (mycophenolate).
• Some autoimmune diseases (g., severe psoriasis, rheumatoid arthritis).

Adverse Effects

• Nephrotoxicity: A major dose-limiting toxicity; manifests as reduced GFR, potential chronic kidney damage.
• Hypertension: Common with cyclosporine.
• Neurotoxicity: Tremor, headache, seizures, especially with tacrolimus.
• Hyperglycemia (tacrolimus > cyclosporine).
• Hirsutism, gingival hyperplasia (notable with cyclosporine).
• Hyperkalemia and electrolyte imbalances.

mTOR Inhibitors: Sirolimus (Rapamycin) and Everolimus

Mechanism of Action

These agents also bind FKBP12, but instead of inhibiting calcineurin, they block the mTOR (mammalian target of rapamycin) pathway. mTOR is vital for T cell proliferation responding to IL-2 signals. By inhibiting mTOR, sirolimus and everolimus obstruct cell-cycle progression from G₁ to S phase, curbing lymphocyte clonal expansion.

Pharmacokinetics

• Oral administration with variable absorption.
• Metabolized by CYP3A4, caution with concurrent drugs.
• Longer half-life (sirolimus) can facilitate once-daily dosing.

Clinical Applications

• Renal transplant patients intolerant to calcineurin inhibitors or in combination with low-dose tacrolimus.
• Cardiac stent coatings (drug-eluting stents) to prevent restenosis by inhibiting smooth muscle proliferation.

Adverse Effects

• Hyperlipidemia: Elevated cholesterol and triglycerides.
• Bone marrow suppression: Thrombocytopenia, leukopenia.
• Mouth ulcers.
• Delayed wound healing: Inhibiting fibroblast proliferation.
• Less nephrotoxic than calcineurin inhibitors, making these a beneficial alternative in patients at higher kidney injury risk.

Antiproliferative and Antimetabolite Agents

Azathioprine

• A prodrug of 6-mercaptopurine that interferes with purine synthesis, impairing DNA and RNA production required for lymphocyte proliferation.
• Used in immunosuppressive regimens for kidney transplantation and autoimmune diseases (e.g., rheumatoid arthritis, SLE).
• Drug Interactions: Allopurinol (xanthine oxidase inhibitor) can elevate azathioprine levels, intensifying toxicity.
• Side effects: Myelosuppression (leukopenia, thrombocytopenia), GI disturbances, increased infection risk.

Mycophenolate Mofetil (MMF)

• Converted to mycophenolic acid, which selectively inhibits inosine monophosphate dehydrogenase (IMPDH), a critical enzyme in de novo guanine synthesis.
• Lymphocytes largely depend on de novo pathways for purines, so MMF preferentially impacts T and B cells.
• Commonly combined with calcineurin inhibitors and steroids in transplant protocols.
• Adverse effects: GI upset (diarrhea), bone marrow suppression, increased infection risk, teratogenic potential.

Methotrexate

• Although a mainstay in chemotherapy, low-dose methotrexate also serves as an immunosuppressant in rheumatoid arthritis, psoriasis, and other autoimmune disorders.
• Mechanism: Dihydrofolate reductase inhibition reduces purine and pyrimidine synthesis, decreasing T and B cell proliferation.
• Toxicities: Mucositis, hepatotoxicity, bone marrow suppression. Leucovorin (folinic acid) rescue can mitigate high-dose toxicity.

Biologic Immunosuppressants

Monoclonal Antibodies

Basiliximab

• Chimeric monoclonal antibody against the IL-2 receptor α-subunit (CD25) on activated T cells.
• Prevents IL-2–driven proliferation during early transplant post-operative period.
• Primarily used in renal transplantation induction therapy, with minimal side effects compared to older polyclonal antibodies.

Infliximab, Adalimumab, and Etanercept

• Target TNF-α, a key pro-inflammatory cytokine in rheumatoid arthritis, Crohn’s disease, psoriasis.
• By neutralizing TNF-α, they reduce joint inflammation or other autoimmune inflammatory lesions.
• Side effects: Infection risk (reactivation of TB), infusion reactions, possible malignancy risk.

Rituximab

• Antibody against CD20 on B lymphocytes. Causes B cell depletion, used in non-Hodgkin lymphoma, rheumatoid arthritis, and certain autoimmune cytopenias.
• Infusion-related reactions, progressive multifocal leukoencephalopathy (rare) among the serious adverse effects.

Fusion Proteins

Etanercept

• A fusion of the human TNF receptor 2 and the Fc portion of IgG1, effectively acting as a soluble receptor that traps TNF-α.
• Reduces inflammation in rheumatoid arthritis, psoriatic arthritis, and ankylosing spondylitis.
• Similar infection risks to other TNF inhibitors.

Other Immunosuppressive Strategies

Antithymocyte Globulin (ATG)

• Polyclonal antibodies derived from animals (e.g., rabbits) immunized with human T cells.
• Used for induction therapy in high-risk transplant recipients or acute rejection episodes.
• Broad T-cell depletion can cause cytokine release syndrome, serum sickness, and profound immunosuppression.

Intravenous Immunoglobulin (IVIG)

• Polyclonal IgG from pooled human plasma.
• High-dose IVIG modulates immune responses in autoimmune conditions (Guillain-Barré syndrome, myasthenia gravis, immune thrombocytopenia).
• Mechanisms include Fc receptor blockade and anti-idiotypic antibody interactions.

JAK Inhibitors (e.g., Tofacitinib)

• Inhibit Janus kinases critical to cytokine receptor signaling, used in rheumatoid arthritis or ulcerative colitis.
• Monitor for cytopenias, infections, and potential for thrombotic events.

Clinical Applications by Condition

1. Solid Organ Transplantation

• Induction: High-intensity prophylaxis at the time of transplant. Agents like basiliximab, ATG, or high-dose steroids reduce early acute rejection.
• Maintenance: Triple therapy with a calcineurin inhibitor (tacrolimus), an antiproliferative (mycophenolate), and low-dose corticosteroids. Adjust based on rejection risk, infection risk, and comorbidities.
• Acute Rejection: High-dose corticosteroids plus possible ATG or switch to alternative immunosuppressants if refractory.

2. Autoimmune Diseases

• Rheumatoid Arthritis: Low-dose methotrexate is a cornerstone, possibly combined with TNF inhibitors (infliximab, etanercept, adalimumab), leflunomide, or other biologics.
• Inflammatory Bowel Disease: Thiopurines (azathioprine, 6-mercaptopurine), methotrexate, or biologic TNF blockers.
• Systemic Lupus Erythematosus (SLE): High-dose steroids for flares, plus mycophenolate or cyclophosphamide for lupus nephritis. Belimumab (anti-BLyS) as adjunct.
• Multiple Sclerosis: Interferon-β, fingolimod (S1P receptor modulator), natalizumab (anti-α4 integrin), or newer agents modulating immune trafficking.

3. Hematologic Disorders

• Aplastic Anemia: Often requires immunosuppressive therapy (ATG, cyclosporine) to halt autoimmune destruction of hematopoietic stem cells.
• Immune Thrombocytopenic Purpura (ITP): Corticosteroids, IVIG, rituximab, splenectomy if refractory.

Key Pharmacokinetic Issues and Drug Interactions

• CYP3A4 Metabolism: Calcineurin inhibitors (cyclosporine, tacrolimus), mTOR inhibitors (sirolimus, everolimus) are all susceptible to inducers (rifampin, phenytoin) or inhibitors (azoles, macrolide antibiotics) affecting drug levels.
• Renal Function: Many immunosuppressants, especially calcineurin inhibitors, can exacerbate renal injury. Dosage adjustments or alternative agents may be required.
• Therapeutic Drug Monitoring: Essential for cyclosporine, tacrolimus, sirolimus, and others to maintain efficacy and avoid toxicity.
• Vaccinations: Live vaccines are generally contraindicated in immunosuppressed patients; inactivated vaccines can be less effective but still recommended to reduce preventable infections.

Common Adverse Effects Across Classes

1. Infections: Reactivation of latent viruses (CMV, EBV, JC virus) or opportunistic organisms (Pneumocystis jirovecii). Prophylactic antimicrobials (trimethoprim-sulfamethoxazole) are often used.
2. Malignancies: Chronic immunosuppression raises the risk of lymphomas, skin cancers (especially with calcineurin inhibitors). Vigilant skin checks and EBV monitoring apply.
3. Metabolic Disturbances: Hyperglycemia, hypercholesterolemia, bone marrow suppression.
4. Organ-Specific Toxicities: Nephrotoxicity (calcineurin inhibitors), hepatotoxicity (methotrexate), pulmonary toxicity (methotrexate, some biologics), infusion-related reactions (monoclonal antibodies).

Individualizing Therapy and Monitoring

Personalized Approaches

• Pharmacogenetics can inform thiopurine dosing (TPMT enzyme levels), adjusting azathioprine or mercaptopurine regimens.
• Drug-level monitoring helps maintain therapeutic windows for calcineurin and mTOR inhibitors.
• Monitoring immune function: Lymphocyte subsets, immunoglobulin levels, or markers of infection risk might guide intensity of immunosuppression.

Algorithmic Strategies

• High immunologic risk transplants (e.g., prior sensitization, ABO incompatibility) receive stronger induction therapy.
• Maintenance adjustments based on rejection episodes, side-effect profile, or evidence of over-immunosuppression (e.g., opportunistic infections).
• Lower-intensity regimens used as tolerated to minimize long-term complications (nephrotoxicity, metabolic syndrome).

Future Directions in Immunosuppression

Novel Targets

• Costimulatory blockade (e.g., belatacept targeting CD80/CD86) aims to prevent T cell activation while sparing side effects associated with calcineurin inhibitors.
• Cytokine Signaling Inhibitors: Investigational JAK or STAT inhibitors, or IL-17 blockers in transplant.
• Cell-based therapies harnessing T regulatory cells, tolerogenic dendritic cells to promote graft tolerance with minimal pharmaceuticals.

Tolerance Induction

• Achieving robust operational tolerance (graft acceptance without lifelong immunosuppression) remains an ultimate goal. Protocols exploring mixed chimerism (donor bone marrow plus organ transplant) have shown promise but remain complex.

Advanced Personalized Monitoring

• Biomarkers: Genetic expression profiles or donor-specific cell-free DNA help detect early rejection or over-immunosuppression.
• Machine Learning: Predictive analytics from large datasets may guide individualized immunosuppression plans for safer long-term outcomes.

Conclusion

Immunosuppressants revolutionize modern transplant medicine by preventing graft rejection and likewise transform management of chronic autoimmune disorders. Through varied mechanisms—ranging from broad-based transcriptional suppression (corticosteroids) to targeted cytokine blockage (monoclonal antibodies) or selective interference with T cell signaling (calcineurin, mTOR inhibitors)—these drugs afford clinicians precise command over aberrant immune processes. Yet, each agent carries substantial risks, especially vulnerability to infections and malignancies. Consequently, tailoring therapy requires a balance between sufficient immunosuppression to avert rejection or disease flare and minimizing iatrogenic harm.

Recent advances in biologics, cell-based tolerogenic approaches, and pharmacogenetics offer prospects for safer, more personalized immunosuppressive strategies. Collaborative care, vigilant monitoring, and ongoing research are pivotal to optimizing outcomes, extending graft longevity, and enhancing quality of life for patients reliant on immunosuppressive therapies.

References

1. Goodman & Gilman’s The Pharmacological Basis of Therapeutics, 13th Edition
2. Katzung BG, Basic & Clinical Pharmacology, 15th Edition
3. Rang HP, Dale MM, Rang & Dale’s Pharmacology, 8th Edition
